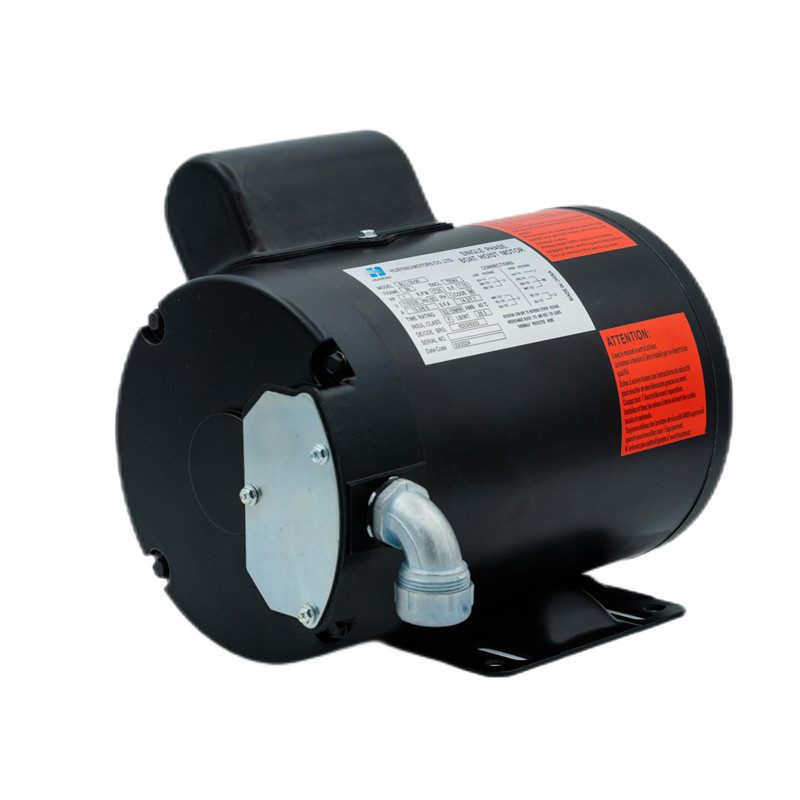

BOAT LIFT MOTORS

The motor is designed for boat lift that requires S2-15min duty running.

Similar Products

Product Range

Series Name

NS/NSP

Brief Introduction

Capacitor start motors: from 1/2hp through 1 1/2hp
Capacitor start capacitor run motors: 2hp

Series Name

NCBL / NLBL

Standard

NEMA

Phase

Single Phase

Power Range

1/2 - 2hp

Speed

1800 rpm

Capacitor Type

1/2-1 1/2hp: Start Capacitor
2hp: Capacitor Start Capacitor Run

Poles

4 poles

Insulation Class

F

IP Degree

IP43

Enclosure Type

TENV

Material of Frame

Rolled Steel

Frame Size

56, 56H

Standard Features

  • Rigid Base (Welded on), or C-Face with Removable Feet or Round Body (Footless) are Optional
  • T Flange and Customized Shaft End is Available
  • Steel Frame and Junction Box
  • Aluminum or Cast Iron End Bracket for Alternative
  • “INVERTER DUTY OPERATION” – 4:1 Constant Torque (CT) / 10:1 Variable Torque (VT)
  • 1.15 Service Factor (Suitable for 50 Hz with 1.0 SF)
  • Insulation Class F, Temperature Rise Class B
  • Manual or Automatic Overload Thermal Protector is Available
  • 100% Copper Wires Supplied by The Top Chinese brand
  • Manufacturers Windings is Vacuum Pressure lmpregnated (VPl) that Can Eliminate Corona and Promote insulation Longevity Rotor is Coated with Anti-Oxidant Painting
  • Each Rotor is Well Balanced with Low Vibration
  • We Use NSK, SKF C&U Bearing
  • Each Bearing is 100% Inspected by a Professional Equipment
  • Various of Packing Types to Satisfy Customers’Requirement
  • Every Component Must Pass Incoming inspection Before Entering Our Warehouse
