Boat Lift Motors

NEMA 56 Frame Electric AC Motor
For Boat Lift

Boat Hoist Motor

Huifeng is a professional electric boat lift motor manufacturer.

Huifeng’s boat lift motor (also called boat hoist motor) is a sinlge phase motor （1/3 – 1.5hp is capacitor start motor, 2hp is capacitor start and run motor）.

  1. The motor is with rolled steel housing(painted motor housing) or stainless steel housing
  2. Motor IP degree is IP43 and IP67
  3. Power range: 1/2hp to 2hp
  4. Duty: S2-15min
  5. TENV enclosure
  6. For flat plate boat lift, and direct drive boat lift.
GET A FREE QUOTE NOW!

1989

Years of Establish

500+

Employees

30

Engineers

55

Numbers of Patents

130,000

Company Area

170+

Inspection Process

20

Well Known Customers

500+

Satisfied Customers

Huifeng Boat Lift Motors: Built Tough for Smooth Lifting

Our NEMA 56 Frame boat lift motor (also called hoist motor) is a single-phase motor.

Choose the right solution for your setup:

1. Boat Lift Motor For Flat Plate Boat Lift:

  • Mounts easily on flat plates using feet

  • Drives pulleys/belts to raise/lower boats

  • Painted steel housing (IP43 rated)

  • Fits inside protective casings

2. Boat Lift Motor For Direct-Drive Lifts: For A-Drive, For E-Drive:

  • Direct drive boat lift ( A drive and E drive):

  • Connects directly to gearboxes

  • Handles outdoor exposure

  • Popular option: Painted steel housing

  • Premium choice: Stainless Steel Housing

Why Huifeng’s Stainless Steel Boat Lift Motor Stands Out:

✓ All-Weather Protection

  • Housing & capacitor cover: 304 stainless steel

  • IP67 rating – survives waves, weather, static freshwater immersion up to 30 minutes at a depth of 1 meter

✓ Smarter Design

  • Oversized conduit box at motor tail for easier wiring

  • Laser-engraved nameplate directly on housing – won’t fade or peel

  • Larger label layout – critical data stays readable for years

Product Range

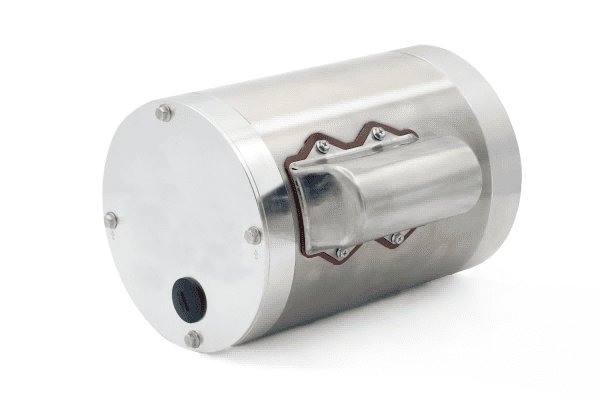

1. Frame 56 Stainless Steel Boat Lift Motor

  • Power range: 1/2hp, 3/4hp, 1hp, 1.5hp, 2hp
  • Poles: 4 poles (1725rpm)
  • Voltage range: 115/230V
  • Insulation class: F
  • Phase: single phase ,capacitor start(1/3hp to 1.5hp), capacitor start and run(2hp)
  • Duty: S2-15min
  • Service factor: 1.15
  • IP degree:
      • Option 1: IP43
      • Option 2: IP67
  • Mounting type:
      • footing mounting
      • C face with rigid base
      • C face without base
  • Material of frame: stainless steel housing + aluminum endshields
  • Frame size: NEMA56
  • Enclosure: TENV

2. Frame 56 Painted Steel Boat Lift Motor

  • Power range: 1/2hp, 3/4hp, 1hp, 1.5hp, 2hp
  • Poles: 4 poles (1725rpm)
  • Voltage range: 115/230V
  • Insulation class: F
  • Phase: single phase ,capacitor start(1/3hp to 1.5hp), capacitor start and run(2hp)
  • Duty: S2-15min
  • Service factor: 1.15
  • Material of frame: painted steel housing + aluminum endshields
  • Mounting type:
      • footing mounting
      • C face with rigid base
      • C face without base
  • IP degree: IP43
  • Frame size: NEMA56
  • Enclosure: TENV

Applications:

  • Flat plate boat lift
  • A-drive ( direct drive)
  • E-drive
  • PWC hoist
GET FREE QUOTE NOW!

Don't Hesitate To Contact Us Now!

0086 180 5984 7284

sales@hfmotor.com.cn

whatsapp: +8618059847284

Factory Video

WHO IS HUIFENG

As a leading Chinese manufacturer of industrial electric motors and permanent magnet motors since 1989. Its products are mainly sold in Europe, North America, and Australia.

Premium motors = fewer replacements = less down time.

Use Huifeng’s motor, means you can buy European standard motor with Chinese price!

What Our Customers Say

Huifeng is different. He really knows what we need, he is working with us to create motor solutions and solve our problems.

Chief Engineer at a Top 10 Motor Company

We have been cooperating with Huifeng for many years, and we have never had any complaints about him

Purchase Manager at a Global Fan Manufacturer

One customer told me that he bought a motor from us which was made by Huifeng 20 years ago, and now the motor is still working well!

CEO at a Leading Gearbox Company

Certificate

CE(Intertek)

CSA(CSA Group)

CCC(CQC)

ISO9001

Similar Products

NEMA Farm Duty Motors

JET Pump Motors

NEMA Single Phase Motors

NEMA Three Phase Motors

FAQ

We only produce electric motors, but yes, we can sourcing gearbox from the the other factory for you.

Our MOQ is 50pcs each type, and totally 150pcs each order.

We have CSA certificate, for customized motor, we also can apply CSA for you.

Yes, we can print your logo on the motor.

We have three types of  boat lift motors.

  1. IP43, rolled steel housing + aluminum endshields
  2. IP43, stainless steel housing + aluminum endshields
  3. IP67, stainless steel housing + stainless steel endshields

We are manufacturer, we’ve been exporting to USA and Canada more than 10 years.

Our boat lift motor ( boat hoist electric motor) is TENV.
