BOAT LIFT ELECTRIC MOTOR
- 56 FRAME - AC MOTOR
Boat Hoist Motor
Huifeng’s boat lift electric motor (also called boat hoist motor) is a sinlge phase capacitor start motor.
- The motor is with rolled steel housing & stainless steel housing
- Motor IP degree is IP43 and IP69K
- Power range: 1/2hp to 1.5hp
- Duty: S2-15min
- TENV enclosure
1989
Years of Establish
500+
Employees
30
Engineers
55
Numbers of Patents
130,000
Company Area
170+
Inspection Process
20
Well Known Customers
500+
Satisfied Customers
Huifeng Boat Lift Motors: Built Tough for Smooth Lifting
Our NEMA 56 Frame boat lift motor (also called hoist motor) is a single-phase capacitor-start motor.
Choose the right solution for your setup:
1. For Flat Plate Boat Lift:
Mounts easily on flat plates using feet
Drives pulleys/belts to raise/lower boats
Painted steel housing (IP43 rated)
Fits inside protective casings
- Direct drive boat lift ( A drive and E drive):
2. For Direct-Drive Lifts (A-Drive/E-Drive):
Connects directly to gearboxes
Handles outdoor exposure
Popular option: Painted steel housing
Premium choice: Stainless Steel Housing
Why Huifeng’s Stainless Steel Boat Lift Motor Stands Out:
✓ All-Weather Protection
Housing & capacitor cover: 304 stainless steel
All external screws: 304 stainless steel
Front/rear covers & terminal box: Corrosion-resistant aluminum
IP69K rating – There are sealing rings at all coupling positions of the motor, survives waves, weather, and washdowns
✓ Smarter Design
Oversized conduit box at motor tail for easier wiring
Laser-engraved nameplate directly on housing – won’t fade or peel
Larger label layout – critical data stays readable for years
Product Range

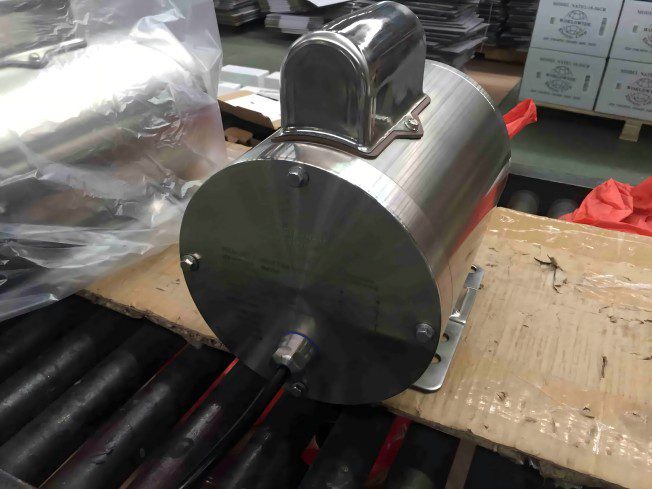

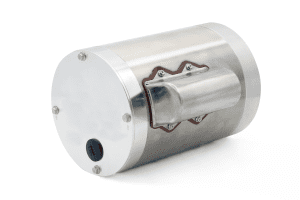

Stainless Steel Boat Lift Motor
- Power range: 1/2hp, 3/4hp, 1hp, 1.5hp
- Poles: 4 poles (1725rpm)
- Voltage range: 115/230V
- Insulation class: F
- Phase: single phase (capacitor start)
- Duty: S2-15min
- Service factor: 1.15
- Material of frame:
- Option 1: stainless steel 304 housing + stainless steel endshields
- Option 2: stainless steel 304 housing + aluminum endshields
- Mounting type:
- footing mounting
- C face with rigid base
- C face without base
- IP degree: IP69K
- Frame size: NEMA56
- Enclosure: TENV
Product Range
Rolled Steel Boat Lift Motor
- Power range: 1/2hp, 3/4hp, 1hp, 1.5hp, 2hp
- Poles: 4 poles (1725rpm)
- Voltage range: 115/230V
- Insulation class: F
- Phase: single phase (capacitor start)
- Duty: S2-15min
- Service factor: 1.15
- Material of frame: rolled steel housing + aluminum endshields
- Mounting type:
- footing mounting
- C face with rigid base
- C face without base
- IP degree: IP43
- Frame size: NEMA56
- Enclosure: TENV
Applications:
- Flat plate boat lift
- A-drive ( direct drive)
- E-drive
- PWC hoist
daf
Factory Video
WHO IS HUIFENG
As a leading Chinese manufacturer of industrial electric motors and permanent magnet motors since 1989. Its products are mainly sold in Europe, North America, and Australia.
Premium motors = fewer replacements = less down time.
Use Huifeng’s motor, means you can buy European standard motor with Chinese price!
What Our Customers Say
Huifeng is different. He really knows what we need, he is working with us to create motor solutions and solve our problems.
Jemma Stone
We have been cooperating with Huifeng for many years, and we have never had any complaints about him
Kelly Joe
One customer told me that he bought a motor from us which was made by Huifeng 20 years ago, and now the motor is still working well!
Samantha Gilbert
Certificate
CE(Intertek)
CSA(CSA Group)
CCC(CQC)
ISO9001
FAQ
Can you also offer gearbox for us ?
We only produce electric motors, but yes, we can sourcing gearbox from the the other factory for you.
What's your MOQ?
Our MOQ is 50pcs each type, and totally 150pcs each order.
Do you have CSA or UL certificate?
We have CSA certificate, for customized motor, we also can apply CSA for you.
Can you print our logo on the nameplate?
Yes, we can print your logo on the motor.
What's the IP degree of your boat lift motor?
We have three types of boat lift motors.
- IP43, rolled steel housing + aluminum endshields
- IP69K, stainless steel housing + aluminum endshields
- IP69K, stainless steel housing + stainless steel endshields
Are you manufacturer or distributor?
We are manufacturer, we’ve been exporting to USA and Canada more than 10 years.
Is your motor TENV or TEFC?
Our boat lift motor ( boat hoist electric motor) is TENV.
