FRACTIONAL HORSEPOWER MOTOR

SINGLE PHASE MOTOR

Huifeng’s fractional horsepower motor – single phase motor is general purpose motors and designed according to NEMA MG.G:2016.

The motors includes single phase capacitor start motor and capacitor start and capacitor run motor.

Frame size is NEMA 56, housing material is rolled steel. The motor is equipped with a C flange, and a rigid or removable feet.

TEFC structure provides sufficient protection for the motor and is suitable for harsh environment, the motor can be used indoor and outdoor.

1989

成立时间

500+

员工

30

工程师

55

专利数

130,000

公司面积

170+

检验项目

20

世界知名客户

500+

十分满意客户

Motor Features

Fractional Horsepower Motor

Capacitor Start Motor(CS Motors)

  • NC series:

    When the motor starts running, a phase difference is generated through the capacitor, forming a rotating magnetic field and bringing high starting torque.

    After the speed reaches 75%, the centrifugal switch disconnects the starting winding and only the main winding runs.

产品范围

  • 功率范围: from 1/3hp – 1hp
  • 极数: 2 poles and 4 poles
  • 电压范围: 115/230V
  • 绝缘等级: insulation class F, temperature rise class B
  • IP等级 IP43
  • 机座号: 56C

应用设备

  • Mixer
  • Hydraulic Power Unit
  • Air Compressor

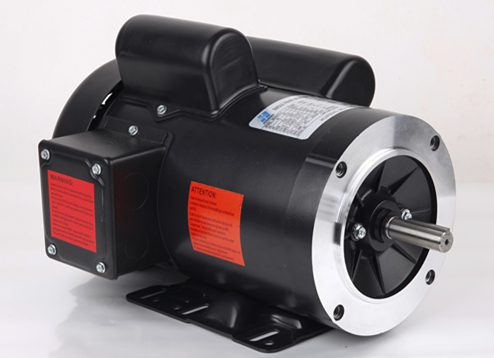

Capacitor Run Capacitor Start Motor(CSCR Motors)

  • NL series:

    A starting capacitor (electrolytic capacitor) to provide high starting torque.

    Increase a running capacitor (metallized polypropylene capacitor) to continuously optimize the magnetic field phase,  and improve motor efficiency and power factor.

产品范围

  • 功率范围: from 1.5hp – 2hp
  • 极数: 2 poles and 4 poles
  • 电压范围: 115/230V
  • 绝缘等级: insulation class F, temperature rise class B
  • IP等级 IP43
  • 机座号: 56C

应用设备

  • Wood Cutting Equipment
  • Gearbox
  • 传送设备
  • Fan
  • Pump

标准特性

Fractional Horsepower Motor

  • 可选固定底脚(焊接),C法兰和活动底脚或无底脚
  • 可定制T法兰和定制轴伸
  • 钢板壳机壳和出线盒
  • 端盖可选铝和铸铁材质
  • “变频工作制” - 4:1恒转矩(CT) / 10:1可变转矩(VT)
  • 1.15服务系数(50Hz为1.0SF)
  • F级绝缘,B级温升
  • 可配置手动或自动热保护器

不要犹豫,马上联系我们!

0086 180 5984 7284

whatsapp: +8618059847284

daf

工厂视频

走近惠丰

自1989年成立以来,惠丰作为领先的工业电机和永磁电机制造商,我们的产品主要销往欧洲、北美和澳大利亚。

优质的电机 = 更少的更换 = 更少的停机维护时间

使用我们的电机,您可以花国产的价格买到欧洲品质的电机。

认证

CE

CE(Intertek)

CSA huifeng

CSA(CSA Group)

CCC

CCC(CQC)

ISO9001 huifeng

ISO9001

常见问答

Yes, we have both EPAct efficiency and premium efficiency single phase motors.

If you need the motor with power ≤1hp, you can choose capacitor start motor, if you need the motor ≥1.5hp, you can choose capacitor start capacitor run motor.

We have CSA certificate, for customized motor, we also can apply CSA for you.

联系我们

作为专业的中国电机制造商,惠丰在电机行业已有30多年的生产和研发经验。

无论您需要:

  • 交流电机或永磁电机

  • 数控加工服务或定转子冲片

  • 高速风机

  • 标准电机或定制电机

只需联系我们,惠丰总能满足您不同的需求。

=
